KSAD AIR DRYERS
COOL AIR, CLEAR BENEFITS
What sets Kaishan’s air dryers apart in the market is our unwavering dedication to incorporating the latest technology and engineering excellence into our products. Our air dryers are designed to deliver superior performance, unmatched energy efficiency, and reliability, ensuring that your operations run smoothly and cost-effectively. Kaishan provides an air-dryer solution, you can expect a product that not only meets but exceeds industry standards, providing a solution that is both innovative and environmentally friendly. Our commitment to innovation, reliability, and efficiency has made us the go-to choice for businesses across various sectors seeking optimal air quality solutions. Refrigerated air dryers play a pivotal role in numerous industries, including manufacturing, pharmaceuticals, food and beverage, and more, by efficiently removing moisture from compressed air to prevent corrosion, product spoilage, and other moisture-related issues.

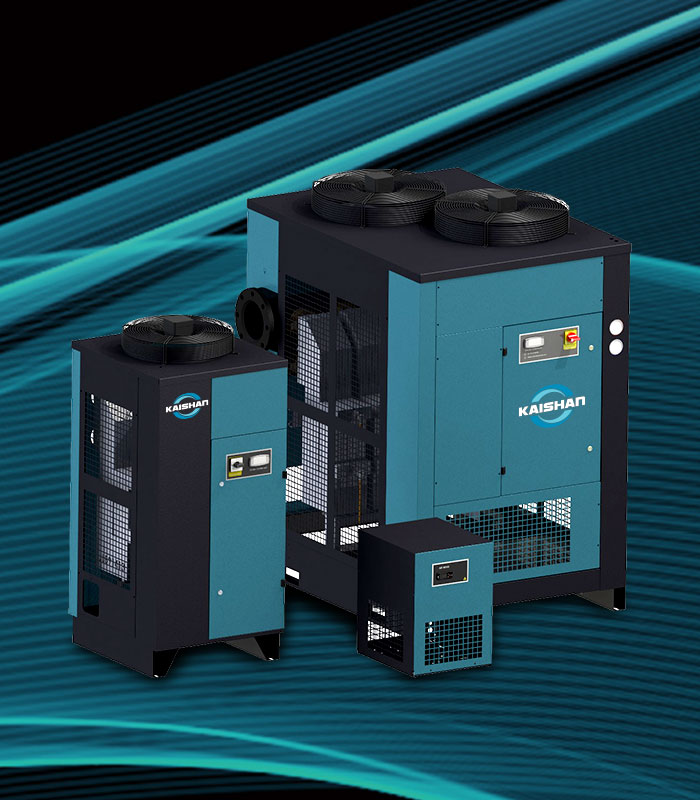

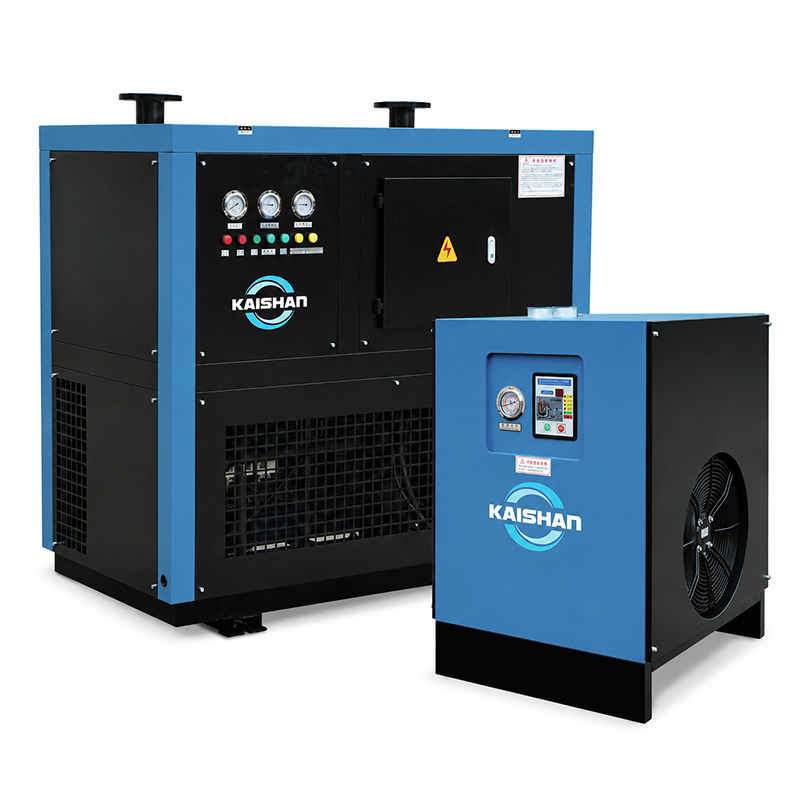

REFRIGERATED AIR DRYERS
Premium quality and high efficiency threaded pipe with high heat transfer coefficient is selected for the heat exchanger and condenser, so they are small in size and compact in structure. Selection of stainless steel or galva nized carbon steel for the cylinder material can avoid secondary contamination to the compressed air. Gas-liquid separation adopts a gas-liquid separator which organically combines cyclone separation with stainless steel wire mesh mist elimination, which has the important functions of thorough gas-liquid separation effect, avoiding secondary evaporation of water and ensuring the drying effect of the refrigerated compressed air dryer. It is much superior to the cyclone separator and lower than the use cost of the filter gas-liquid separator, with a high perfor mance to price ratio.
Inlet Temp.
Pressure Dew Point
Inlet Pressure
Air Handling Capacity
Cooling Power
Normal Temp. Type
45°C
2-10°C
6-10 Bar
88.3-4,592 CFM
0.75-30 HP
High Temp. Type
85°C
2-10°C
6-10 Bar
88.3-4,592 CFM
0.75-30 HP

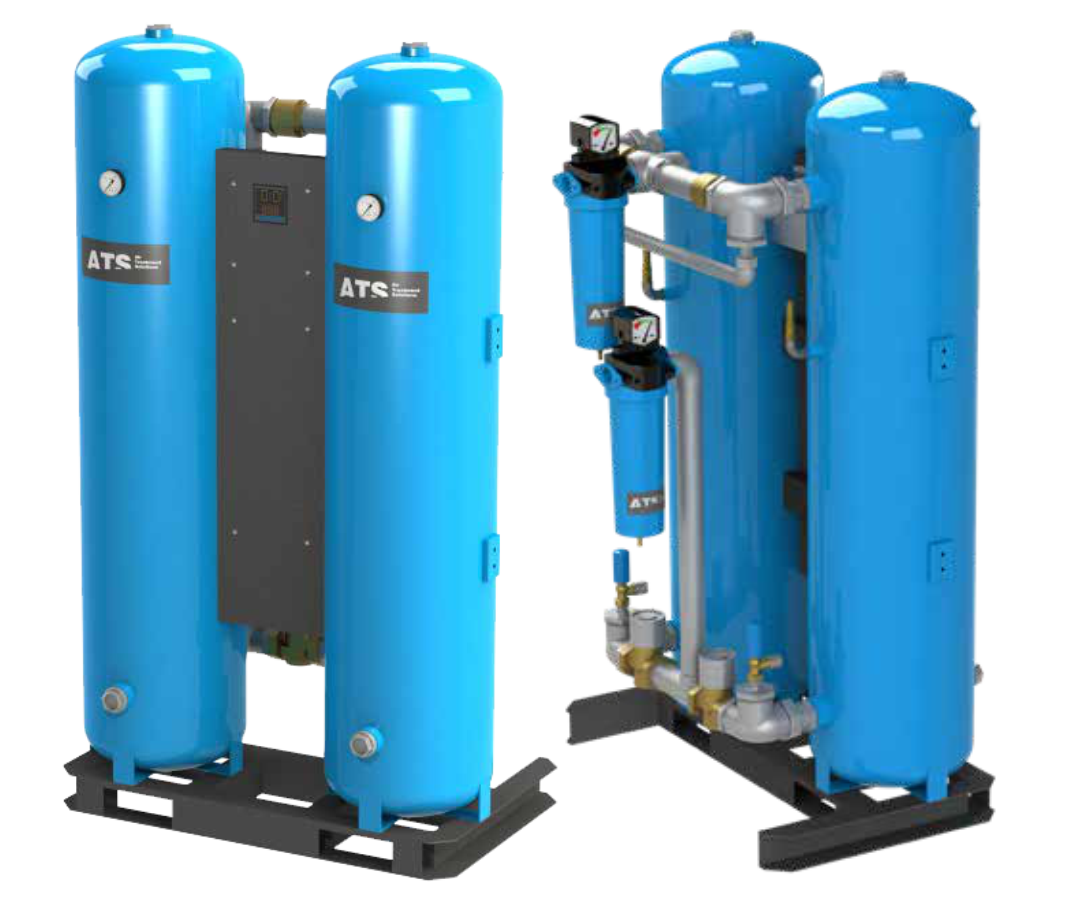

DESICCANT AIR DRYER
SPECIALIZED FOR EXTREMELY DRY AIR APPLICATIONS
Dry, clean air is essential for ensuring the optimal operation of pneumatic systems, protecting sensitive equipment from moisture damage, and maintaining the quality of finished products. Recognising these needs, Kaishan Desiccant Air Dryers are designed to provide consistent, high-quality air, meeting the stringent requirements of industries ranging from pharmaceuticals to food processing, and beyond. What sets Kaishan Desiccant Air Dryers apart in the market is not just our unwavering attention to quality and performance but also our focus on energy efficiency and environmental sustainability. Our dryers are engineered to reduce operating costs and minimise environmental impact, making them a smart choice for businesses looking to optimise their operations while contributing to a greener planet.
Inlet Temp.
Pressure Dew Point
Inlet Pressure
Air Handling Capacity
Cooling Power
Normal Temp. Type
20-45°C
-20°C*
6-10 Bar
42.4-10,950 CFM
0.70-160 HP
*Also available at -40°C and -70°C
Filter Element Level
COMPRESSED AIR PRECISION FILTER
ANTI-CORROSION PERFORMANCE
The most obvious advantage of zero air consumption heat regeneration adsorption dryer is that it heats and regener ates the adsorption desiccant with the heat of the air compressor oil temperature, which reduces the electric heating power of the micro-heat regeneration adsorption dryer and saves the consumption of electric energy. It ends the era when traditional adsorption dryers, such as heatless regeneration adsorption dryers and micro-heat regeneration adsorption dryers, require air consumption for cold blowing and purging. The filter element is tested by the special leak-proof online testing technology of PSI in the UK to ensure the filtration precision.The folding filter element greatly increases the filtering area and reduces the pressure drop by up to 50% and increases the carrying capacity of particles, while the stainless steel internal and external support net enhances the stability of the filter element. Human-centered design
Filter Type
HC
HT
HA
HF
HH
Primary pre-filtration, filtering out dust particles, water mist and oil mist
Efficient universal filtration, filtering out dust particles, water mist and oil mist
Efficient universal filtration, filtering out dust particles, water mist and oil mist
Ultra high efficiency filtration, filtering out dust particles, water mist and oil mist
Activated carbon filtration, filtering off peculiar smell, water mist and oil mist
Filtration Precision
3µm
3µm
3µm
3µm
3µm
Residual Oil
5 ppm
1 ppm
0.01 ppm
0.003 ppm
0.003 ppm
